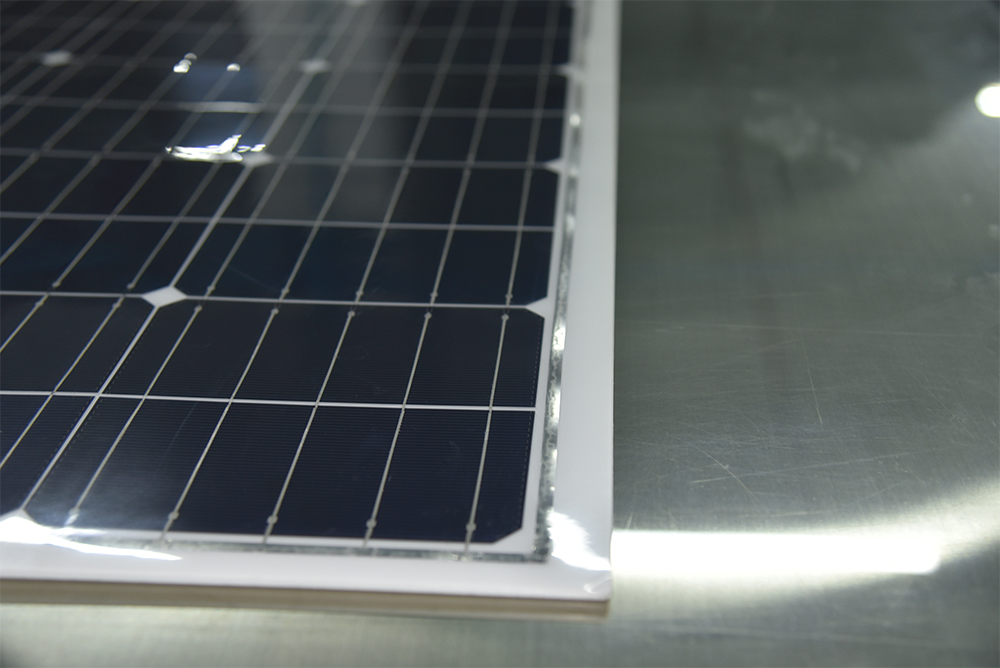

1. TPT flexible solar panels with panasonic solar cells for marine, vessels, yacht, boat and rv, motorhomes, camping etc applications to supply solar power.
2. Panasonic flexible solar cell;
3. High efficiency up to 23%;
4. Customisation size is accepted, depends on size to change different power.
| No. | Power
(W) |
matrix | Vmp
(V) |
Imp
(A) |
Voc
(V) |
Ics
(A) |
efficiency
(%) |
Dimension(mm)
Junction box Back or Front |
Thickness(mm) without back glue | Weight
about(kg) without back glue |
| 1 | 40W | 2*16
(cell cut) |
23.2 | 2.12 | 20 | 2.01 | 22% | Back L*W: 700*350
Front L*W: 770*350 |
3-3.2 | 0.78 |
| 2 | 45W | 2*18
(cell cut) |
26.1 | 2.12 | 22.5 | 2.01 | Back L*W: 680*350
Front L*W: 850*350 |
0.86 | ||
| 3 | 55W | 4*8
(cell cut) |
23.2 | 2.83 | 20 | 2.67 | Back L*W: 470*670
Front L*W: 540*670 |
1.05 | ||
| 4 | 60W | 4*9
(cell cut) |
26.1 | 2.83 | 22.5 | 2.67 | Back L*W: 530*670
Front L*W: 600*670 |
1.16 | ||
| 5 | 85W | 4*8
(cell cut) |
23.2 | 4.45 | 20 | 4.22 | Back L*W: 680*670
Front L*W: 750*670 |
1.46 | ||
| 6 | 95W | 4*9
(cell cut) |
26.1 | 4.45 | 22.5 | 4.22 | Back L*W: 760*670
Front L*W: 830*670 |
1.61 | ||
| 7 | 100W | 4*9
(cell cut) |
26.57 | 4.52 | 23.29 | 4.29 | Back L*W: 760*670
Front L*W: 830*670 |
1.61 | ||
| 8 | 165W | 4*8
(full cell) |
23.2 | 8.75 | 20.0 | 8.25 | Back L*W: 1310*670
Front L*W: 1380*670 |
2.68 | ||
| 9 | 185W | 4*9
(full cell) |
26.1 | 8.75 | 22.5 | 8.25 | Back L*W: 1470*670
Front L*W: 1540*670 |
3 |
