1. 40w-200w new technique etfe flexible solar panels for marine,vessels, yacht, boat and rv, motorhomes, camping etc applications to supply solar power.

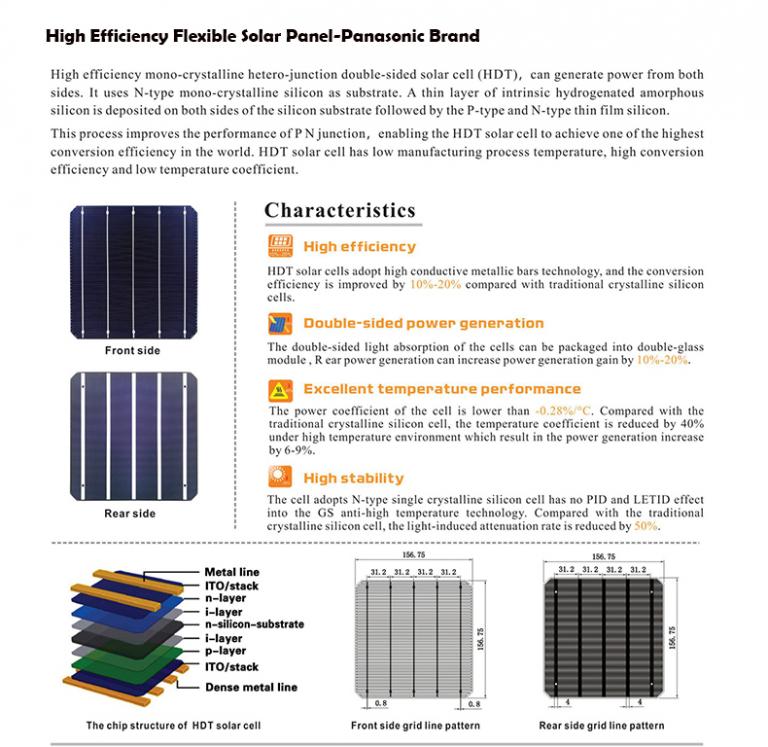

2. panasonic flexible solar cell;
3. high efficiency up to 23%;
4. customisation size is accepted, depends on size to change different power.
1. Flexible;
2. Lightweight;
3. Thin Film;
4. Without Glass;
5. High Efficiency;
6. High waterproof Grade.
Automatically power on a day off in the night. Adjustable power is available.
| No. |
Power (W) |
matrix |
Vmp
(V) |
Imp
(A) |
Voc
(V) |
Ics
(A) |
efficiency
(%) |
Dimension(mm)
Junction box Back or Front |
Thickness(mm) without back glue | Weight
about(kg) without back glue |
| 1 | 40W | 2*16
(cell cut) |
23.2 | 2.12 | 20 | 2.01 | 22% | Back L*W: 700*350
Front L*W: 770*350 |
3-3.2 | 0.78 |
| 2 | 45W | 2*18
(cell cut) |
26.1 | 2.12 | 22.5 | 2.01 | Back L*W: 680*350
Front L*W: 850*350 |
0.86 | ||
| 3 | 55W | 4*8
(cell cut) |
23.2 | 2.83 | 20 | 2.67 | Back L*W: 470*670
Front L*W: 540*670 |
1.05 | ||
| 4 | 60W | 4*9
(cell cut) |
26.1 | 2.83 | 22.5 | 2.67 | Back L*W: 530*670
Front L*W: 600*670 |
1.16 | ||
| 5 | 85W | 4*8
(cell cut) |
23.2 | 4.45 | 20 | 4.22 | Back L*W: 680*670
Front L*W: 750*670 |
1.46 | ||
| 6 | 95W | 4*9
(cell cut) |
26.1 | 4.45 | 22.5 | 4.22 | Back L*W: 760*670
Front L*W: 830*670 |
1.61 | ||
| 7 | 100W | 4*9
(cell cut) |
26.57 | 4.52 | 23.29 | 4.29 | Back L*W: 760*670
Front L*W: 830*670 |
1.61 | ||
| 8 | 165W | 4*8
(full cell) |
23.2 | 8.75 | 20.0 | 8.25 | Back L*W: 1310*670
Front L*W: 1380*670 |
2.68 | ||
| 9 | 185W | 4*9
(full cell) |
26.1 | 8.75 | 22.5 | 8.25 | Back L*W: 1470*670
Front L*W: 1540*670 |
3 |
Because of Flexible solar panel light weight, high efficiency, easy to install,large use to Marine,Vessels, yacht, Boat and RV, motorhomes, camping etc applications to supply solar power, high quality and make big power to charge batteries.
