Wall tilt frame system is developed for wall, which can help our customers to have more choose to install solar panel.
Wind Load :
<60M/SSnow Load :
<1.4KN/M2Color :
NatureMaterial :
Aluminum or galvanized steelInstallation Site :
Wall or flat concrete roofWarranty :
10 years and 25 years service timeSolar panel wall mounting systems

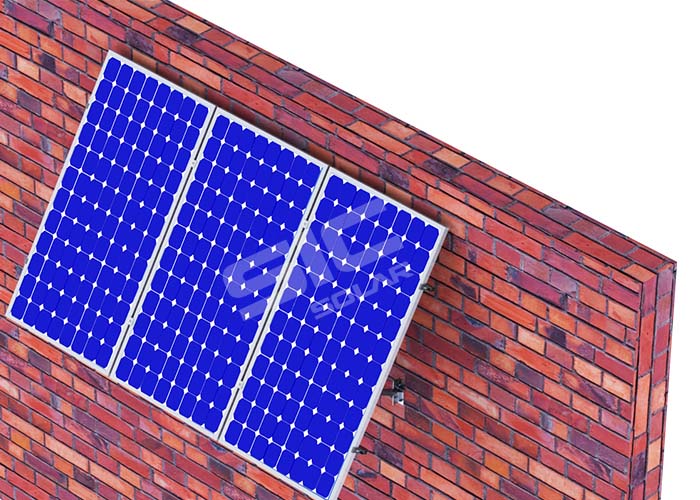

Wall PV mounting solution is an economical mounting type for panel installation. It can be easily installed on wall in customized angle.
SIC solar develops different mounting series to meet demands of the panel facade installation.The panel will be fixed on wall tightly, which can withstand high wind speed. With the mounting installed back of panels, it looks very concise and pretty.
Category: Flat roof mounting
|
Installation Site |
Roof or Wall |
|
Wind Load |
<60M/S |
|
Snow Load |
<1.4KN/M2 |
|
Material |
Aluminum 6005-T5 & Stainless Steel 304 |
|
Color |
Natural or Customized |
|
Anticorrosive |
Anodized aluminum & stainless steel |
|
Warranty |
10 years and 25 years service time |
1. Put fixed wall tilt frame on the wall surface.
2. Fix the rail on the fixedwall tilt frame.
3. Fix the mid clamp between panels, end clamp on the panel edge.
4. Finished.
☆ Easy to use - Highly pre-assembled components make the installation more quickly and easily.
☆ Safety - The whole structure have been strictly tested to stand up to the extreme weather
☆ High Quality - Structure have been strictly controlled to ensure 10 years warranty & 25 Years lifetime.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list
Triangle frames could be packed into cartons with plywood pallet. Steel pallet could be offered if needed.
