Product Description:

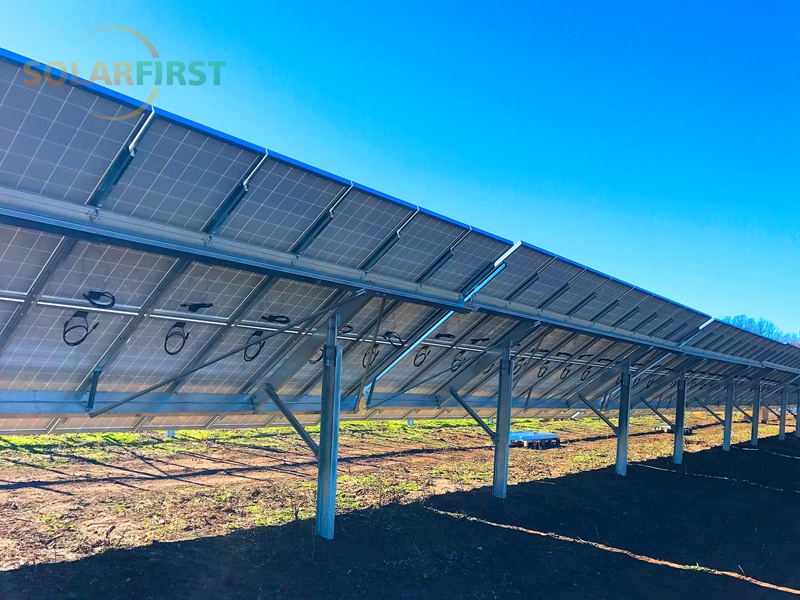

Pole ground mount system is a ground solar panel mounting system on one single pole that delivers flexible, effective and durable design to mount 4.6.8.10 panels per pole. It can be applied to large commercial scale installations, and the pole system is customized with hot-galvanized steel and aluminum which offers good corrosion-resistant capability. The single pole mounting system can be designed to be adjustable if required by the customer.
Advantage:
1.One single pole delivers flexible and effective.
2.Durable design to mount 4, 6, 8 or 10 panels per pole.
3.It can be applied to large commercial scale installation.
4.Hot-galvanized steel and aluminum offers good corrosion-resistant capability.
5.Efficient structural design can save 20% installation time and labor cost.
Product Parameter:
|
Installation Site: |
Ground |
|
Applicable Roof Cladding: |
Suitable for most types of cladding |
|
Slop: |
Up to 60o |
|
Max. Building Height: |
Up to 65ft(20m) |
|
Wind Load: |
130mph(60m/s) |
|
Snow Load: |
30psf(1.4kN/m2) |
|
Applicable Module: |
Framed |
|
Module Orientation: |
Landscape or portrait |
|
Code Compliance: |
AS/NZS 1170; JIS C8955:2011 |
|
Material: |
Aluminum, stainless steel |
|
Warranty: |
10 years on material |
Application:
