Solar Cable Clip is used for to hold and manage solar cable.Landpower Solar Cable Clip provides reliable management of fixing solar module cable to the solar panel aluminum frame.
Solar Panel Cable Clip is design to hold and manage cable wire under solar panels. Landpower Solar Cable Clip provides reliable management of fixing solar module cable to the solar panel aluminum frame, it just simply clip the cables and slide the cable clip onto the the frame of solar panel, then the cable is seated firmly and securely. The clips are made of high quality corrosion resistant 304 stainless steel, and the flared edge design makes it easily to be installed and removed. Our solar panel cable clip is designed to accommodate most of solar panels,it can hold one or up to four solar cable.
Technical Information:
|
Item Name: |
Solar Panel Cable Clip |
|
Material: |
Stainless Steel 304 |
|
Accommodation: |
Most of Framed Solar Panels |
|
Application: |
Solar module frames with a thickness of 1.1 – 2.0 mm |
|
Warranty: |
12 years with 25 year lifespan |

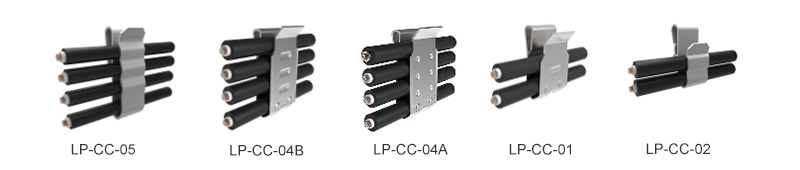

Our Solar Panel Cable Clip family are designed to hold one cables to four cables,it can be used most of framed solar panel, for the further specification please see below table.
|
PART NO |
LENGTH mm[In.] |
WIDTH mm[In.] |
HEIGHT mm[In.] |
QTY OF WIRES HELD |
WIRE DIAMETER mm[In.] |
|
LP-CC-01 |
21.50[0.846] |
18.00[0.709] |
8.38[0.330] |
1 to 2 Cables |
Max6.80[0.267] |
|
LP-CC-02 |
31.60[1.244] |
10.00[0.394] |
11.70[0.461] |
1 to 2 Cables |
Max7.50[0.295] |
|
LP-CC-03 |
22.50[0.886] |
10.00[0.394] |
17.00[0.699] |
1 to 2 Cables |
Max7.50[0.295] |
|
LP-CC-04 |
31.60[1.244] |
18.00[0.709] |
7.90[0.311] |
1 to 4 Cables |
Max6.80[0.267] |
|
LP-CC-05 |
31.63[1.245] |
10.00[0.394] |
7.20[0.283] |
1 to 4 Cables |
Max7.50[0.295] |
Solar Cable Clip Item No: LP-CC-02:
Solar Cable Clip Item No: LP-CC-03:
Solar Cable Clip Item No: LP-CC-04:
Solar Cable Clip Item No: LP-CC-05:
We design and produce various solar panel cable clips, we also supply OEM service, if you need cable clip not list on our website, feel free to contact us, we will email you our whole items list.
