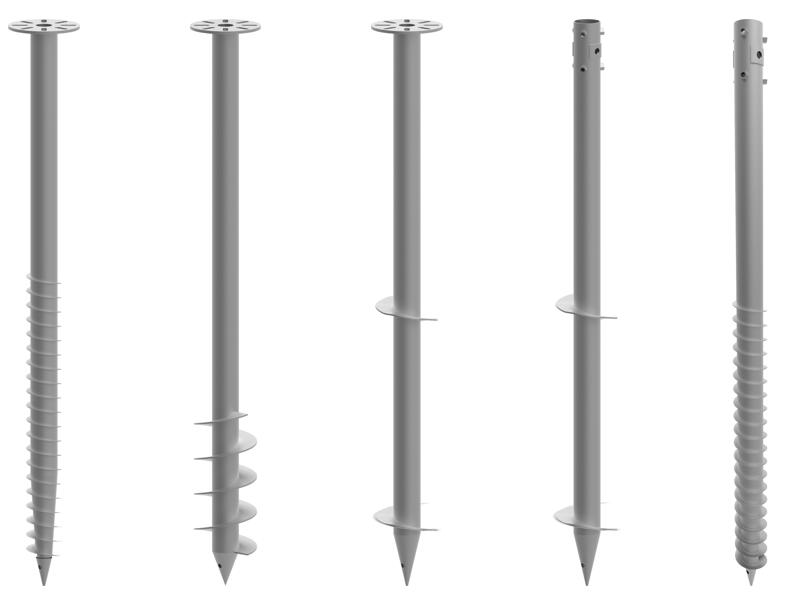

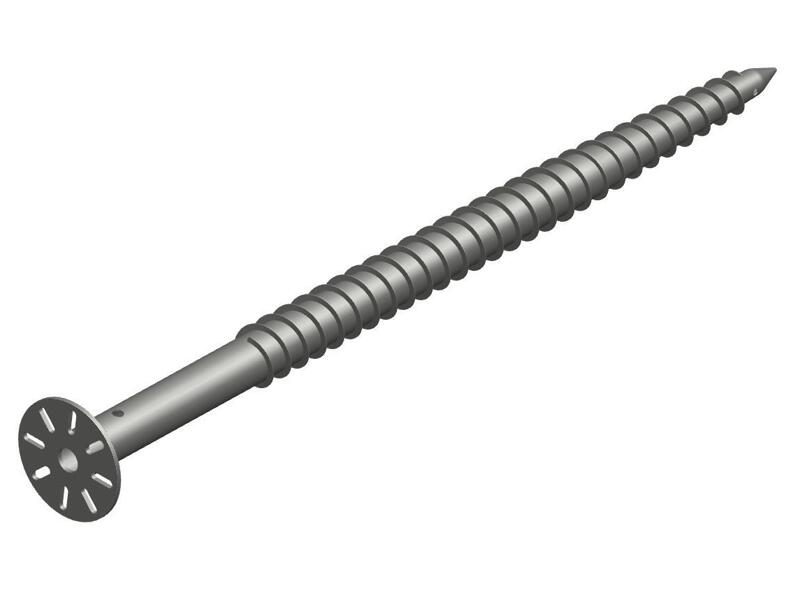

Solar Ground Screw

Home / Products /

Solar Ground Screw

Applicable Site:	Open terrain, soil ground surface
Color:	Silver
Length:	Customizable
Module Orientation:	Landscape or Portrait

Thickness :
3mm/3.5mm
Surface :
Hot dipped galvanized
Length :
Can be customized
Warranty :
10 years and 25 years service time
Function :
For solar project, timber buildings, decking, fences, balconies, pergolas, flagpoles, ect
Material :
Hot dipped galvanized steel Q235B

Inquire Now

Product Categories

How Can We Help You ?

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Hot Products

Product Details

Product Features

1. A time proven, versatile and technically sound system

2. Faster installation with small or handheld equipment

3. Can be installed in limited access areas

4. Site cleanliness and minimize damage to environment

Specifications

Item No.	Length	Out Dia.	Flange Dia.	Thickness	Material
D7612 76x1200	1200 mm	76 mm	200/220 mm	3/3.5 mm	HDG steel
D7614 76x1400	1400 mm			3/3.5 mm	HDG steel
D7616 76x1600	1600 mm			3/3.5 mm	HDG steel
D7618 76x1800	1800 mm			3/3.5 mm	HDG steel
D7620 76x2000	2000 mm			3/3.5 mm	HDG steel

Contact us

One stop solution for Solar ground screw.

Please feel free to contact us, we are dedicated to provide you with the best buying experience.

Email : info@fastensolar.com
Phone : 0086-592-5665910
Skype : fastengroupltd

Hot Tags : Solar earth screw Steel Anchor bolts Foundation screws for soil PV Earth anchors Solar ground anchor Ground screws foundation
