Rooftop Mounting System Tin Roof Solar Mounting for Solar Panel installation

Home / Products /

Rooftop Mounting System Tin Roof Solar Mounting for Solar Panel installation

Aluminum Ballasted Mounting System,easy to install---The simple design and pre-assembled components ensure a quick and easy installation.

Inquire Now

Product Categories

How Can We Help You ?

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Hot Products

Product Details

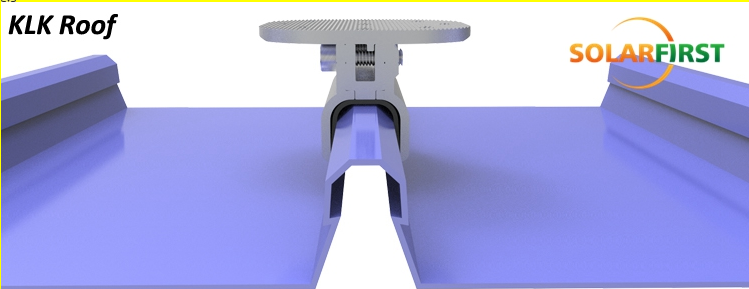

New Design Solar Roof Mounting Solutions

Aluminum ballasted mounting system is designed with great flexibility both for the residential and commercial roof solar system. It is small and light weight to the roof sheet.

Advantages are as follow:
1.Ballasted mount, Do not harm the roof structure.
2.Simple Components:Only 4 Parts!
3.Most Parts are Preinstalled, Save 50% Labour Force!
4.Lower and Competitive Price.
5.Rust-resistance.

Product Informaion

Type:	Roof solar mounting
Installation Site	Metal Roof
Specification:	Normal, accept customize
Wind load	60m/s
Snow load	Up tp 1.4KN/m²
Installation Angle	10-60deg
Material	Aluminum Alloy & Stainless Steel
Fastener parts material	Aluminum
PV modules	Framed of frameless
Module orientation	Landscape or Portrait
Standard	JIS C 8955/8956-2011
	GB50009-2012
	AS/NZS 1170
	DIN 1055,IBC 2006
Anti-corrosive	Anodized
Warranty	10 Years and 20Years Duration
Delivery time:	within 20 working days
Package:	Standard Packing

Photo Show

Packing

Hot Tags : Aluminum ballasted mounting system Solar Tile Roof Mounting Solar panel tile roof mounting Metal roof solar bracket roof solar bracket Tin Roof Solar Mounting
