Pitched Tile Roof Mounting System
Pitched Tile Roof Mounting System
Home / Products /

Pitched Tile Roof Mounting System

Pitched Tile Roof Mounting System Pitched Tile Roof Mounting System Pitched Tile Roof Mounting System Pitched Tile Roof Mounting System

Pitched Tile Roof Mounting System

Project Site: Sloped roof tile
Tile type: Most tile roof
Slope of roof: Up to 60°
Max Building Height: Up to 20m
Wind Load: 88m/s
Snow Load: 1.4kn/㎡
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standard: AS/NZS 1170, MCS, JIS &SGS

Inquire Now

Product Categories

Hot Products

  • Product Details

     Product Features

1. Pitched tile roof mounting structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Few components and no more than two kinds of tools in whole system fixation

4. All pitched roof components are made with high quality aluminum & stainless steel

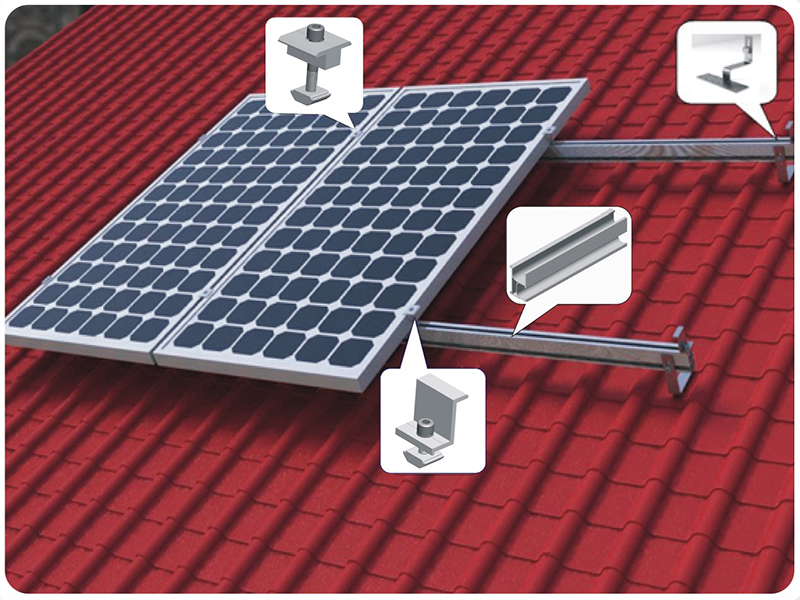

     System Overview

Pitched tile roof mounting structures

     Key Components

Rail in Customized Length
 Rail Connectors
 Mid Clamps
 End Clamps
 Roof Hook

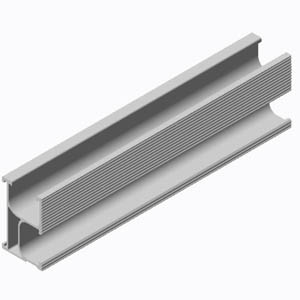

Rail in Customized Length

Rail Connectors

Mid Clamps

End Clamps

Roof Hook


     Contact us

One stop solution for pitched roof hook mounting system.

Please feel free to contact us, we are dedicated to provide you with the best buying experience.

Email : info@fastensolar.com
Phone : 0086-592-5665910
Skype : fastengroupltd

Hot Tags : roof mounting system Tilt Roof Bracket solar mounting system for tile roof Solar Tile Roof Racking Tile Roof Solar Mounting Kit Pitched Roof Solar Mounting Brackets
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Ask For The Product : Pitched Tile Roof Mounting System
