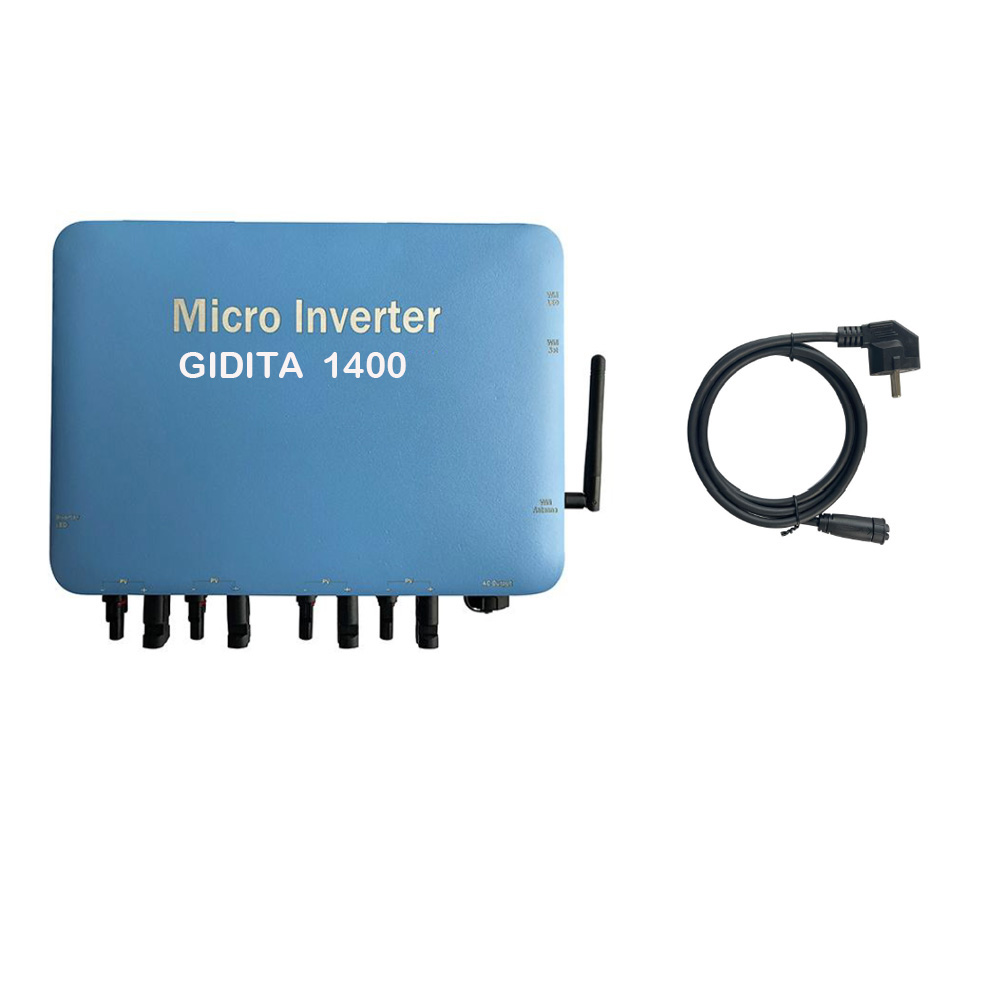

On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W
On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W
Home / Products /

On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W

On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W

On Grid Micro Inverter WIFI With Cloud Monitoring Isolated Island Protection 1200W 1300W 1400W 1500W

PRODUCT FEATURES

1. MPPT(maximum power point tracking) effectively track and lock maximum power output of solar panels.
2. When the inverter track the maximum power point of the solar panel, it will automatically locked and with
stable output.
3. 4 independent MPPT（MPPT).
4. standard MC4 input port，easy and safe installation.
5. Integration AC output port.
6. Pure sine wave output.
7. anti-islanding protection function：inverter will automatically stop output when the utility grid off or fault.
8. Over-temperature protection, short current protection and over-load protection.
9. IP65 waterproof function.
Inquire Now

Product Categories

Hot Products

  • Product Details

On-Grid Micro Inverter with WiFi and Cloud Monitoring, Isolated Island Protection, Available in 1200W, 1300W, 1400W, 1500W



INSTALLATION PROCEDURES


*Prior to installing the Microinverters, Please verify that the utility voltage at the point of common grid connection matches the voltage rating on the Microinverter label.

Step 1 - Attaching the Microinverters to the Racking.

a. Mark the location of the Microinverter on the rack, with respect to the PV module junction box or any other obstructions.
b. Mount one Microinverter at each of these locations using hardware recommended by your module racking vendor.

Step 2 - Connecting the Microinverter AC bus cable one by one,

Step 3 - Connecting Microinverters to the PV Module,
Please do NOT exceed PV panel(s) VOC over inverter max. input voltage.

Step 4 - Double check all Microinverters, connectors and cables are correctly and well connected.

Step 5 - Turn ON the main AC circuit breaker of utility-grid. Your system will start producing power after a 30secs safety delay period.



LED DISPLAY

1.Green light steady = Microinverter in generating.

2. Red flflash = Microinverter in waiting.

3.Red light steady =

a. Island protection.
b. Over-temperature protection.
c. Over / low AC voltage protection.
d. Over / low DC voltage protection.
e. Over / low AC frequency protection.
f. Fault.




WIFI LED Display

1. The green light flashes after always on = the WiFi cloud monitoring module is waiting for configuration.

2. The light off after always on = the WiFi cloud monitoring module starts and enters the normal working state.

3. The light flashes = the network is not configured or the network cannot connect to the wireless network device, or the micro inverter has been deleted in the cloud.

4. No light = WiFi cloud monitoring is working normally.




On-grid micro inverterOn-grid micro inverterOn-grid micro inverterOn-grid micro inverter



Parameter Table




Hot Tags : 1200w micro inverter Grid-Tied Micro Inverter solar panel inverter Cloud Monitoring Inverter WiFi Micro Inverter On-Grid Micro Inverter
