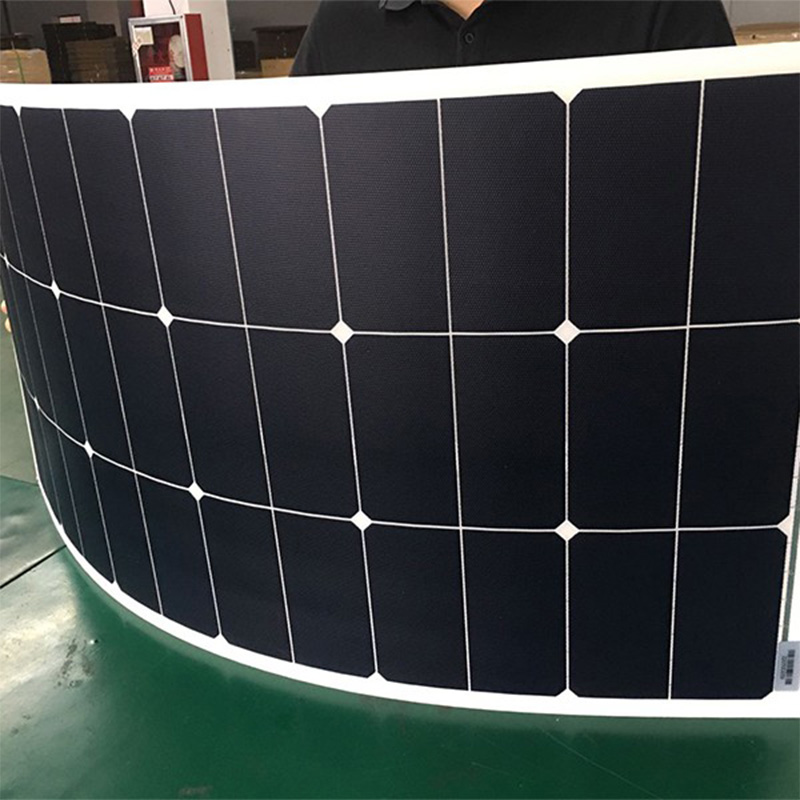

1. 110w ibc flexible solar panel for rv, caravan, marine, sailboat, houseboat, trawlers, ships, led lighting , camping, charger etc.
2. comparing to sunpower solar pnael, the same structure, but ibc better higher values.
3. customized size and volltage are accepted, depends on size to change different power.
1. high efficiency Flexible solar panel, IBC（Interdigitated Back Contact ) the same structure to SUNPOWER solar panel, but our IBC solar panel has bigger power per piece, better performance with cheaper price;
2. Lightweight, ETFE coated IBC flexible solar panel compare to glass solar panel only 1/5 weight;
3. Thin Film, 2-3.5mm about one coin thickness;
4. Without Glass, not easy break, good to somewhere like weak roof or limited area, like solar car, solar boat, solar yacht etc applications, also better transportation;
5. IBC Flexible solar panel High Efficiency up to 23-24.5%, but mono glass solar panel only 17-19%;
6. High waterproof Grade, IP68 good for RVs and marine etc.
solve the problem such as monocrystalline silicon organic encapsulation technology and bonding strength to make the product serivce lifetime up 15-20 years.
Pressed by concave and convex structure to avoid the problem of structure mirror, can more fully absorb sunlight, improve the capacity, enhanced the surface in the process of laminating adhesive strength, avoid bubbles, between EVA and avoid fold, suppresion of concave and convex point after the angle of the solar panels can be wider scope for installation, avoid the error caused by the installation angle reflection loss.
solving the combination problem of solar cells and fabric, the weight of our flexible solar panel is only one fifth compared to the same weight watt traditional glass solar panel.
| 110W IBC High Efficiency Flexible Solar Panel | |
| Peak Power(Wp): | 110 |
| open circuit voltage/VOC(V) | 24.5 |
| max power voltage/Vmp(V) | 20.9 |
| short circuit current/Isc(A) | 5.61 |
| max power current/Imp(A) | 5.27 |
| minimum bending radius(mm) | 450 |
| max system voltage(VDC) | 1000 |
| dimension(mm) | 1090*540*2.5 |
| weight(kgs) | 2.0 |
| Above specifications at standard test conditions(STC) | 1000W/M², AM 1.5
cell temperature 25°C |
| No. |
Power (W) |
Matrix (solar cell) |
Vmp (V) |
Imp (A) |
Voc (V) |
Ics (A) |
efficiency
(%) |
Dimension(mm)
Junction box Back or Front |
Thickness(mm) without back glue | Weight
about(kg) without back glue |
| 1 | 50W | 4*2 | 8.80 | 5.68 | 9.20 | 5.88 | 23-24.50% | Back L*W: 745*372
Front L*W: 775*372 |
3mm | 1.2 |
| 2 | 75W | 4*3 | 13.20 | 5.68 | 14.10 | 5.88 | Back L*W: 745*538
Front L*W: 775*538 |
1.5 | ||
| 3 | 100W | 4*4 | 18.12 | 5.53 | 20.40 | 5.72 | Back L*W: 705*745
Front L*W: 705*775 |
2.0 | ||
| 4 | 125W | 4*5 | 20.20 | 6.18 | 21.54 | 6.52 | Back L*W: 705*910
Front L*W: 705*940 |
2.5 | ||
| 5 | 150W | 4*6 | 24.80 | 6.05 | 25.12 | 6.29 | Back L*W:705 *1075
Front L*W: 705*1105 |
3.0 | ||
| 6 | 175W | 4*7 | 28.84 | 6.16 | 29.50 | 6.36 | Back L*W: 705*1240
Front L*W: 705*1270 |
3.5 | ||
|
7 |
200W | 4*8 | 32.02 | 6.33 | 33.39 | 6.58 | Back L*W: 705*1400
Front L*W: 705*1435 |
3.8 | ||
| 8 | 225W | 4*9 | 36.25 | 6.21 | 40.24 | 6.38 | Back L*W: 705*1570
Front L*W: 705*1600 |
4.0 | ||
| 9 | 280W | 5*9 | 32.30 | 8.67 | 33.87 | 9.13 | Back L*W: 870*1570
Front L*W: 870*1600 |
5.0 | ||
| 10 | 310W | 5*10 | 34.22 | 9.10 | 36.50 | 9.50 | Back L*W: 870*1720
Front L*W: 870*1740 |
5.5 |
