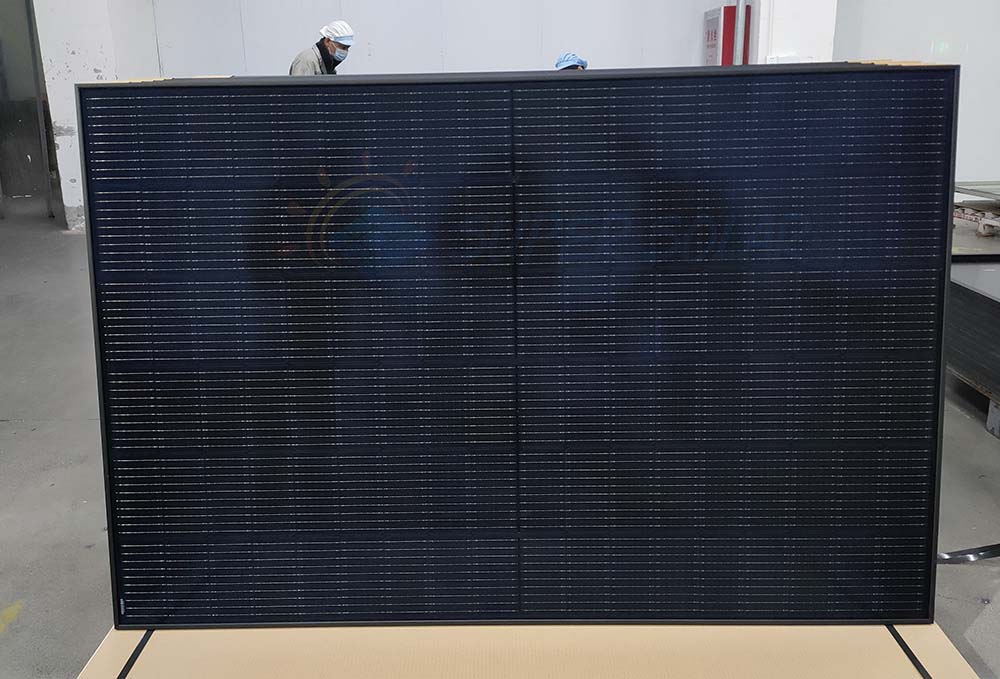

All Black Solar PV Panels Wholesale
Product Description
|
|
|
|
MBB Cell
|
Higher Output Power
|
Harsh Environmental Adaptability
|
|
New circuit design, lower internal current,
lower internal resistance loss.
|
Module adopts 108 pcs of 182* 182 mm half
cells, the maximum power can reach 410W.
|
Strict salt spray and ammonia corrosion test
by TUV Nord.
|
|
|
|
|
Load
Capacity
|
Low
Light Features
|
PID
Protection
|
|
Mechanical load tests including wind load
2400 Pa and snow load 5400 Pa done by TUV Nord.
|
Higher
performance under low light environment.
|
Ensure the attenuation probability caused by
PID phenomenon is minimized.
|
|
|
|
|
Glass
|
Solar Cell
|
Frame
|
| AR Coating Tempered, Low Iron, Lower Reflection, High Transparency, Anti-Reflective | A Grade/ Perc/ Square Mono/ Half Cell Technology Higher Efciency, Anti PID PVCells | Anodized Aluminum Alloy Frame Black/sliver Optional |
|
|
|
|
|
Backsheet
|
Junction Box
|
Cable
Connector
|
| White or Black optional | IP67 Rated Waterproof Junction Box | Photovoltaic Technology Cable 4.0mm2 (Customized Available) |
SPECIFICATIONS
Weight
21.5kg
Dimensions
1722mm* 1134mm* 30mm
Cell Dimensions
182* 182mm
Cell Amount
54 *2 pcs
Maximum System Voltage
1500V
Junction Box
IP68
Frame
Aluminum Alloy
Cable
4mm2
Connector
Cable connector
Application Level
Grade A
Black panels come in two types
BoW
BoB or all black
Black frame on white back
Black frame on black back
Optional black panel clamps or rails
