Our best off-grid solar panel kit. They pack solar panels, controllers, inverters, batteries and other accessories in their packaging. It can provide environmentally friendly power for RVs, trailers and campers, and the 500w solar power system is also very suitable for cabins and houses.

The solar photovoltaic power system can provide you with an output of 500 watts, making it suitable for unlimited off-grid power in various applications.

3KW Solar PV Panel System Specifications:

MPPT Solar Charge Controller:		Multifunctional protection Pure sine wave output, full power 100% uninterrupted power
Default battery system voltage (VDC)	12VDC/24VDC/48VDC
Inverter Output	Rated power	3000W
	Surge rating (20ms)	9000W
	Capable of starting electric Motor	2HP
	Wave form	Pure sine wave/ Same as input (AC mode)
	Nominal output voltage RMS	110/120VAC 220/230/240VAC(±10RMS)
	Output frequency	50Hz60Hz±0.3Hz
	Inverter efficiency(Peak)	>85%
	Line mode efficiency	>95%
	Typical transfer time	8ms(Max)
Solar Charge Controller	Max solar charging current	30A,40A,50A,60A,80A
	Voltage	12V,24V,48V,96V
	Max PV input power	12V-30A:360W,12V-50A:600W,12V-60A:720W,12V-80A:960W,12V-100A:1200W,12V-120A:1440W
		24V-30A:720W,24V-50A:1200W,24V-60A:1440W,24V-80A:1920W,24V-100A:2400W,24V-120A:2880W
		48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
		96V-80A:7680W,96V-100A:9600W,96V-120A:11520W
	PV array MPPT voltage range	12V:18V-100V,24V:36V-130V,48V:72V-160V,96V:144V-280V
	Peak conversion efficiency	>99%
Other	Mounting	Wall mount
	Display	LCD+LED
	Cooling fan	Intelligent fan cooling system
	Audible noise	<60dB
	Coommunications	RS-232,SNMP,WI-FI,Dry Contact(Optional）
	Operation temperature range	-10℃~50℃
	Storage temperature	-10℃~60℃
Protection	Over load protection	Rated power over 110%,shut down automatically
	Temperature protection	Built-in temperature sensor real-time induction, ,≥85 alarm, ,≥85 shut down the whole machine
	Short circuit protection	Automatic Shutdown
Battery	Low battery protection	10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC)
	Low battery cutoff	10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC)
	High Battery alarm	15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC)
	High Battery protection	16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC)

Solar Panels:

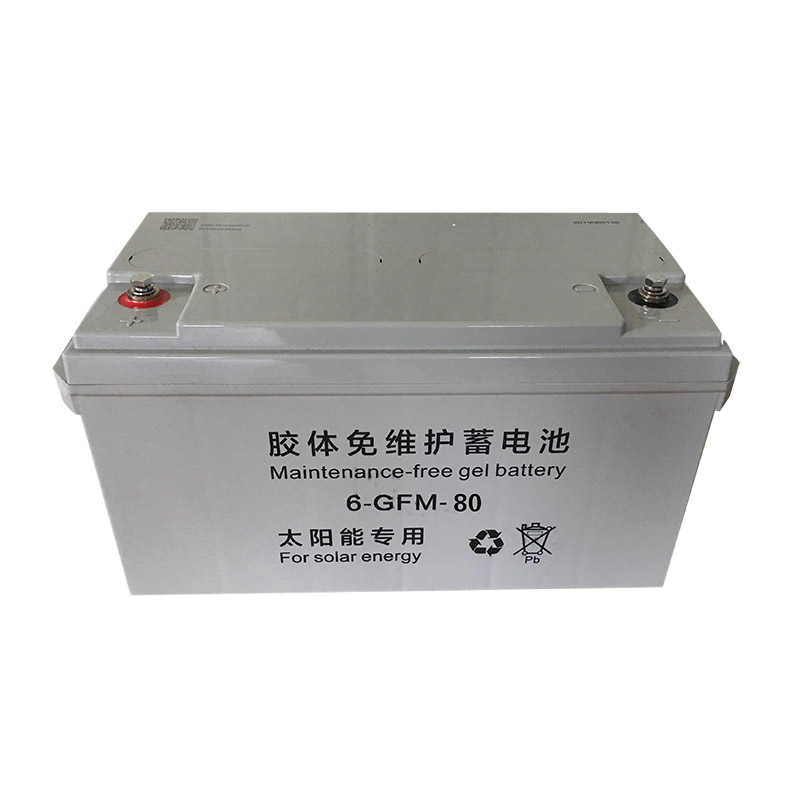

Batteries:

Accessories:

* All accessories such as brackets and connecting wires can be configured according to personal installation environment requirements

* Your requirements can be customized.

Can bring electrical appliances within 3000W

• Water heater (1000W): Use alone for about 14 hours
• Rice cooker (800W): Use alone for about 18 hours
• Microwave oven (700W): Use alone for about 20 hours
• Air conditioner (1.5P): Use alone for about 14 hours
• Water pump (800W): Use alone for about 18 hours
• Kettle (1500W): Use alone for about 9.6 hours

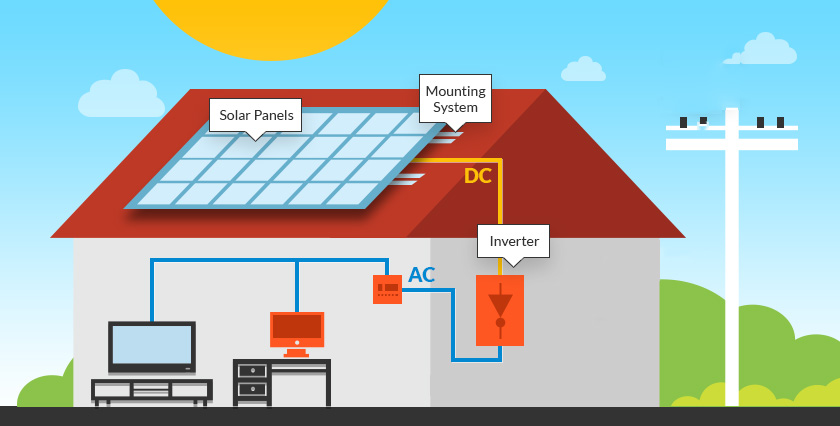

Residential solar panel system provides a complete renewable energy solution for your house
